ASUKA MIKADO 630S
DVB T2 กล่องรับสัญญาณ ดิจิตอลทีวี ASUKA MIKADO-630S (ตัวท็อป)

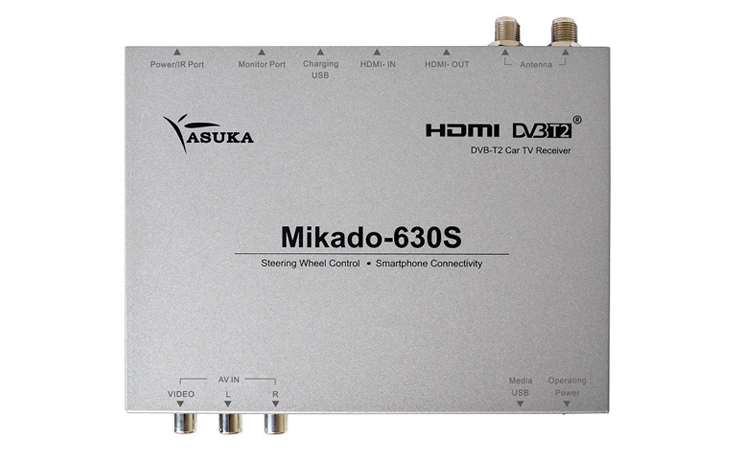

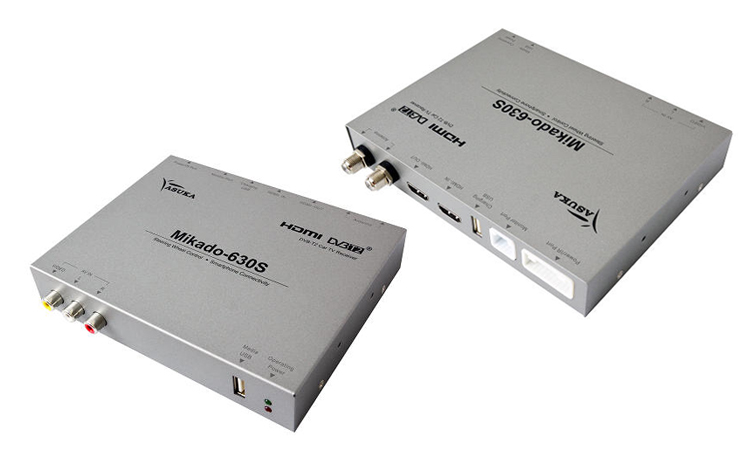

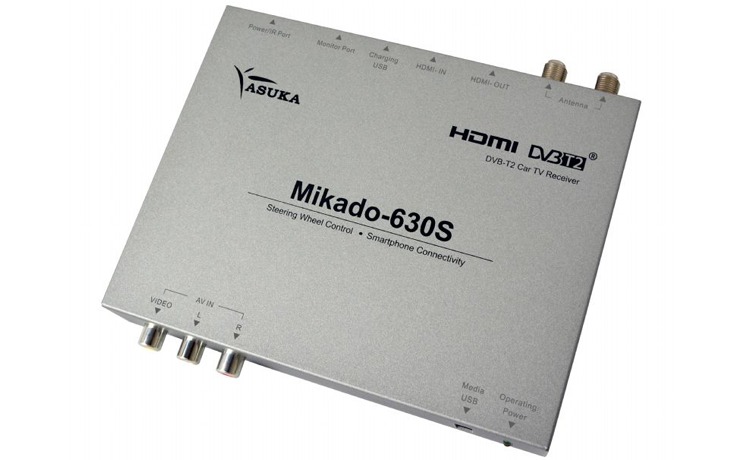

Mikado-630S
DVB-T2 TV Receiver with Smartphone Connectivity
(1) With HDMI-IN & HDMI-OUT, upgrade your car entertainment system with Full-HD video & crystal-clear audio.
(2) Best-in-class DVB-T2 reception
(3) High mobility support up to 140km/hr
(4) Smartphone connectivity for Android/iPhone (MHL/Lightning/HDMI)
(5) Built-in steering wheel control for convenient operation
(6) Full-function multimedia playback with last-position memory
Specification
RF Input
Antenna Active antenna supported (F-Connector)
Frequency range VHF(170-230MHz) and UHF band (470-862 MHz)
RF input impedance 75 Ohm
Channel bandwidth 6/7/8 MHz for DVB-T:1.7/5/6/7/8/10 MHZ for DVB-T2
TV System
Transmission standard ETSIEN 302-755 v1.3.1 standard
Support all DVB-T2 modes,including,
-Single and multipe-PLPs
-SISO and MISO transmission
Video/Audio decoder Real time 1080 Full-HD Video Decoder:
- MPEG-2(ISO/IEC 13818-2) SD & HD
- H.264(MEPG-4 AVC, ISO/IEC 14496-10) SD & HD
S/W Feature
OSD Language English, German, French, Portuguese, Spanish, Italian, Dutch, Finnish, Thai, Russian,
Traditional Chinese, Indonesian
Features DVB-T/T2 TV, Auto Channel Search,Multi-Language EPG, Teletext, Subtitle
TV/Radio Recording Record TV programs on USB device
Media Formats supported
Media port USB
Audio format MP3, WAV
Video format MPEG-l/ll/lV, VOB, AVI, DivX, Xvid, MKV, TS, MOV, RMVB, FLV, WMV, ASF
Recorded file format *.tsv(TV recording)
Subtitle format SRT, SUB, SSA, ASS,SMI, PSB, TXT,IDX
Interface
USB Port 1 Support the USB 2.0 host (for playback and for TV/Radio recording)
1 for smartphone charging
AV input port 1 AV input(CVBS,Audio)with RCA connector
DVR input port 1 DVR signals with USB connector
CCD input port 1 CVBS input with RCA connector
Power/IR Port +12-24DC In, supported through IR dongle cable
support steering wheel control (2wire)
AV Output 2 CVBS Video out,1 Audio(L/R)out
HDMI Output 1 HDMI output(TypeA)
UART/RGB output 1 UART,1 aRGB output
HDMI Input For MHL/HDMI Input
Power
Input voltage 12-24 V DC
Power consumption 6.5 Watt,max
Dimension and Weight
Dimension 185 x 130 x 30 mm
Weight 630g
|
